Wooden bowsprint added to a F210

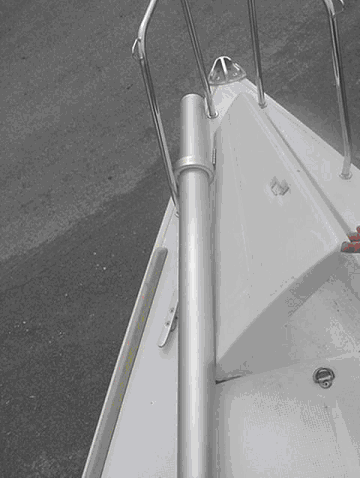

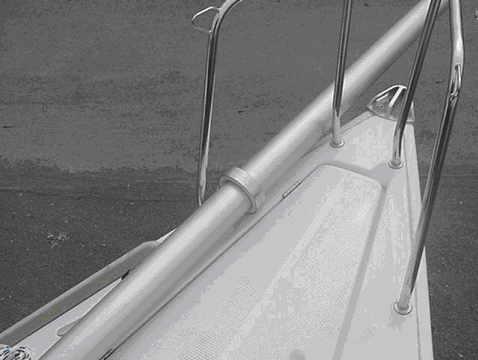

From: Lazaros Polymenakos. Aluminum bowsprit that replaced the wooden one above. The sprit is made of aluminum, diam is 60/50mm (external, internal) and length is 2.15m.; the length was selected according the Finot design, so that the sprit extends about 1.0m from the bow edge and can be attached to the forward deck padeye (the one used for attaching a block for the symmetrical spin pole downhaul).
